DPD变螺距螺杆真空泵性能优势：
●高压段抽速快，运转功率低，噪音低/High pressure period of pumping speed is fast, low power and low noise.
●可依制程/环境需求选用水冷（防爆）或气冷（防爆）马达/Can choose water in accordance with the process/environment demand (explosion) or air cooled motor (explosion).
●气冷马达机型可搭配自循环冷却系统，能使用在无冷却水系统的环境/Air cooled motor model can match the circulating cooling system, can use in the absence of cooling water system of the environment.
●PD变螺距系列，耗能低、节能减排、省成本/PD varying pitch series, low energy consumption, energy conservation and emissions reduction, and save cost.
|
型 号 Model |
单位 |
DPDF110 |
DPD120 |
DPD300 |
DPD400 |
PD6500 |
DPD800 |
|
|---|---|---|---|---|---|---|---|---|
| 抽气速度(50HZ/60HZ) | L/min | 1800 | 1667/2000 | 4167/5000 | 5556/6667 | 9030/10840 | 11011/13233 | |
| m³/hr | 110 | 100/200 | 250/300 | 330/400 | 540/650 | 680/800 | ||
| cfm | 65 | 59/71 | 147/176 | 196/236 | 317/382 | 393/471 | ||
| 终极压力 | Torr | ≤7.5*10-3 | ||||||
| mbar | ≤7.5*10-2 | |||||||
| Pa | ≤1 | |||||||
| 马达 | 频率 | HZ | 50/60 | |||||
| 电压 | V | 220/380 | 220/380/440 | |||||
| 功率 | Hp | 2.2 | 4/4.8 | 8/10 | 15/20 | 25/30 | 25/30 | |
| KW | 3 | 2.98/3.58 | 6.7/7.5 | 11/15 | 18.5/22 | 18.5/22 | ||
| 底压耗功 | KW | 0.35 | 1.6/2.0 | 3.6/4.2 | 5.5/7 | 10/13 | 11/14 | |
| 连接 | 进气口 | NW50 | NW50 | ISO63 | ISO63 | ISO100 | ISO100 | |
| 排气口 | NW40 | NW40 | NW40 | NW50 | ISO63 | ISO63 | ||
变螺距螺杆真空泵特点：
说明：
日韩不卡免费视频对产品不断改进，保有设计变更权，如有更改，恕不另行通知
典型应用：
●面板/TFT-LCD,Touch Panel.
●太阳能/Solar.
●冶金系统/Metallurgical System.
●镀膜/Coating.
●电浆制程/Plasma processes.
●干燥处理/Drying Process.
●制程气体抽取/ Degassing.
●生技/制药/Biotech/Pharmaceutical.
●化工产业/Chemical Industry.

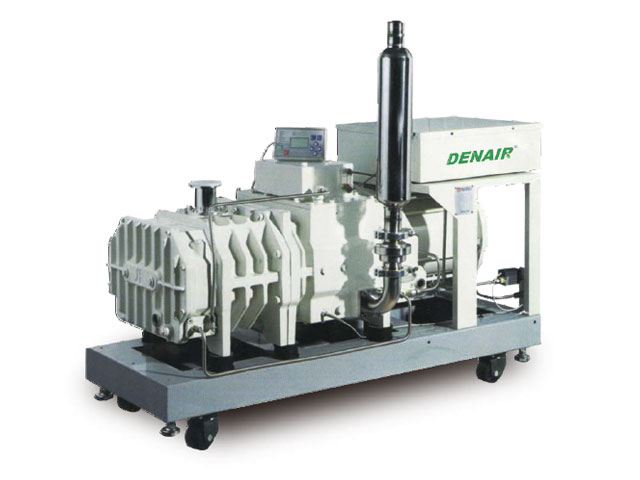

采购 ：DPD系列变螺距真空泵
